Fix: Desktop Icons Moving Randomly on Connecting External Display in Windows

Desktop icons rearranging, shifting from their positions on their own is a common problem in Windows 10 and 11 PCs especially after you connect an external display or monitor.

This can also happen due to numerous other reasons such as, different resolution or scaling on external display, corrupt user profile or icon cache.

If you are facing this issue in Windows 10 or 11 then you can use some of the fixes we list here to rectify this problem

Stop Themes from Changing Desktop Icons

In Windows 10 & 11, Press the Windows + R shortcut key and then enter the following command in the Run dialog.

ms-settings:themes

In the Themes Settings window, look for “Desktop Icon Settings” under Related Settings.  In Windows 10, the link for this setting would be available on the right side pane of the Themes window, listed under Related Settings.

In the Desktop Icons Settings window, uncheck the box labeled “Allow themes to change desktop icons

This would prevent Theme changes from messing up your desktop icon layout, in the future.

Try Setting a Custom Scaling Size

Windows choses a default Scaling Size for your display depending on its native resolution and physical dimensions. For example, a 15 inch laptop display with an 1920 x 1080 resolution would have a default scaling of 125%

A scaling size of 125% means that Windows would be digitally upscaling everything on your display so that the graphics and text are legible. Scaling is necessary on high pixel density screens like laptops because if Windows shows everything using the native resolution then a 720pixel wide image would take exactly 720 pixels on your screen, which would be too small for viewing. With a scaling factor of 125%, that photo would be 900 pixels wide despite its original resolution of 720 pixels.

How Does Scaling Effect Desktop Icons?

This scaling size is also applied to the icons and their positions on your desktop. However, when you connect an external display; Windows would choose a scaling size of either 100% or less than the one set on your laptop computer because big screens don’t require scaling to be legible.  But, this also means; your icons may move and change their position automatically as Windows scales them down.

To fix this, you can set a Custom scaling size which would remain the same for both your main and secondary display. It won’t be changed by Windows whenever you connect an external display. This would lead to your icons staying in place the way you see them on your laptop.

However, you should keep in mind that this leads to your laptop screen and your external display being rendered with the same custom scaling size set by you. In simple terms, everything on your external display would appear slightly bigger as Windows is forcing your external display to scale to 125% instead of 100%.

Set Custom Scaling in Windows 10

To set the custom scaling in Windows 10 you can do the following,

Press the Windows + R shortcut key and then type the following command in the Run dialog.

ms-settings:display-advanced

In Windows 10, this command would open the following page. Look for Custom Scaling and enter 120 in the text box and click on the Apply button. Windows may require you to Sign out and login again for this setting change to take effect.

Click on the Sign out now button to sign out and then login again to enable Custom Scaling.

On enabling Custom Scaling, Windows would mess up the layout of your desktop icons. You will have to Rearrange them just once, but after that the desktop icon layout would not change randomly when you connect any external display.

Set Custom Scaling in Windows 11

Press the Windows + R shortcut Key and then type the following command in the run dialog.

ms-settings:display-advanced

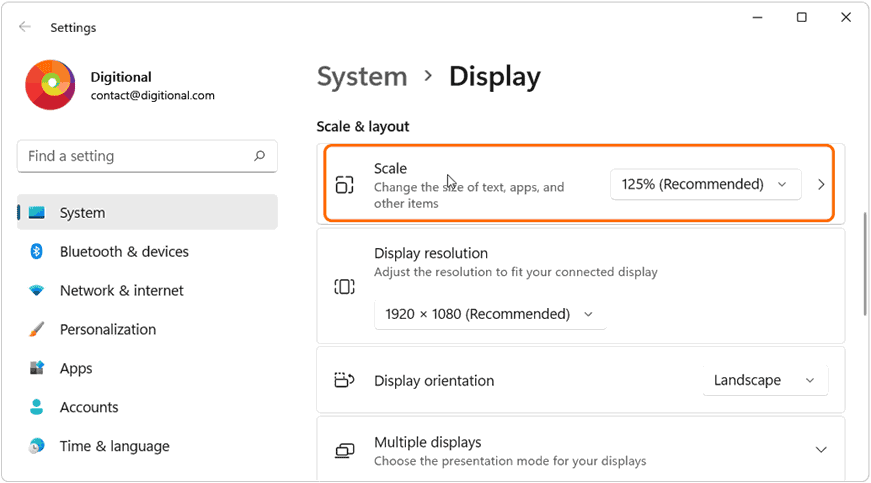

This will open the System > Display window in the Settings app. In this window, click on Scale under ‘Scale & Layout’.

In the System > Display > Custom Scaling window, Enter 120% in the textbox next to Custom Scaling and click on the check mark button next to it.

Windows would then display the “The custom scale factor won’t be applied until you sign out” message with the ‘Sign out now’ button. Click on this button to Sign out of Windows and then login again.

You have now, set a custom scaling of 120% which would remain fixed for both your laptop and every secondary display you connect to your PC. Windows would not scale it down to 100% for external displays.

When custom scaling is active, you would see the “A custom scale factor is set” message in the System > Display settings window. It also gives you an option to “Turn off custom scaling and sign out”.

Clicking on this button would revert back to the default scaling of either 125% or the one recommended by Windows 11 for your display.

Install a Third Party App for Managing Desktop Icons

You can install third party freeware apps like DesktopOk from SoftwareOk.com. It would save the resolution of the connected display along with the layout of the desktop icons, by date and time. It would help you to restore the position when you disconnect or switch the display.

Try Clearing Icon Cache

Windows maintains a database which contains thumbnails, generated for the files on your computer. If this database is corrupt or too large then it may cause icon rendering and layout shift issue.

You can try clearing the Icon Cache to fix this issue. The detailed instructions are given in the following link.

Try disabling Align To Grid and Auto Arrange

You can try this to automatically align your icons if their layout has been messed up, however, this is not a permanent fix for this issue.

Right Click on your desktop and then select View. Then Uncheck Align Icons to Grid. You can also try Unchecking Auto Arrange icons. This may fix the icon issue temporarily.

Update Display Drivers

To update the display drivers press the Windows + R shortcut and then type the following command in the Run dialog and hit Enter.

devmgmt.msc

Expand Display adapters and right click on the Graphic Cards and select Update Drivers.

We hope, these steps helped you to fix the icon shifting issue in windows.
